LED Drivers

All Products
LED Drivers
Waterproof LED Drivers
Phase Cut Dimmable LED Drivers (Traic Dimming)
PhaseCut Dimmable LED Drivers
Analogue Dimmable LED Driver(0-10)
Dali Adjustable Dimmable LED Driver(0-10)

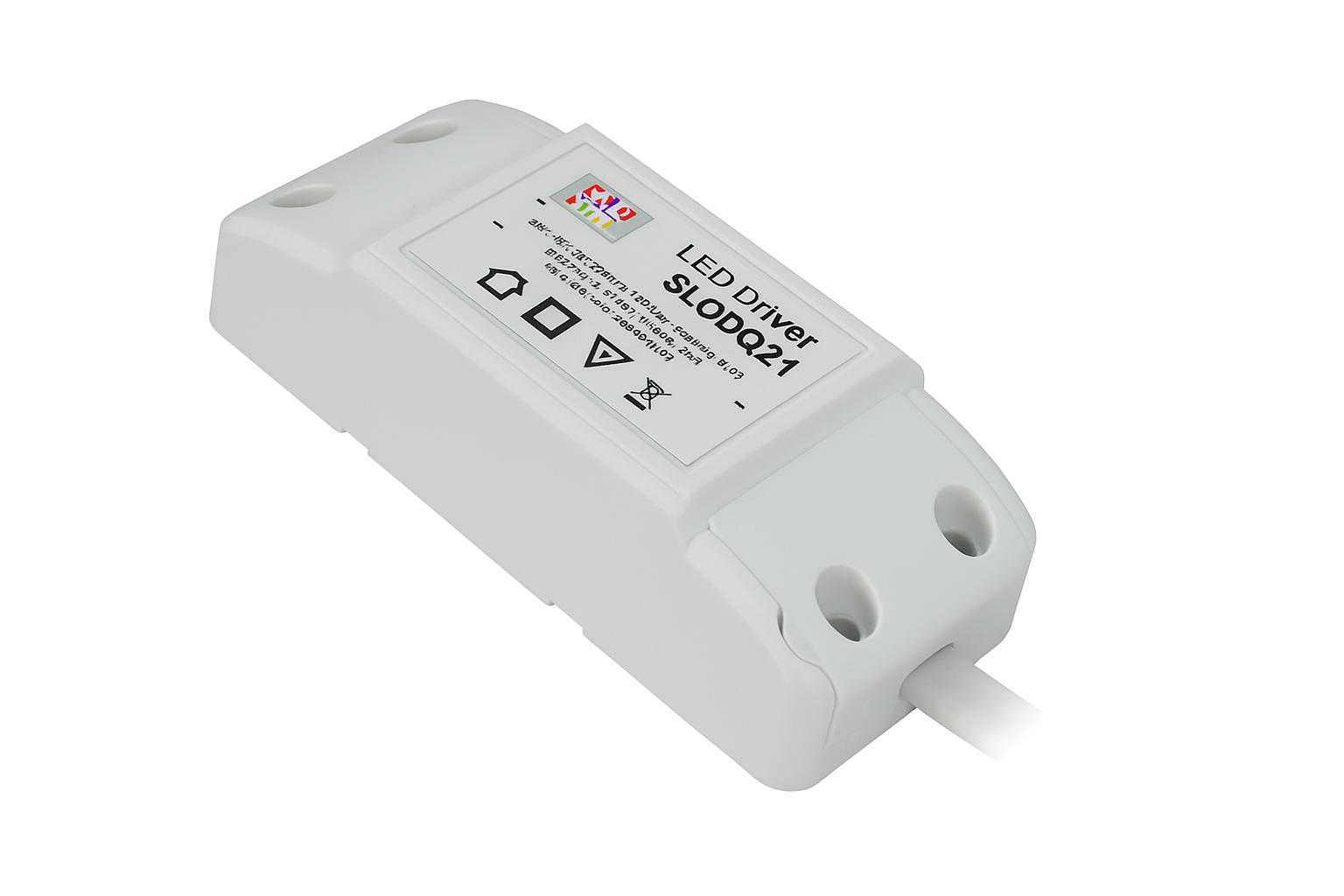

LED Drivers

LED Drivers

Code	Input Voltage	Output Voltage	Current	Power	IP Rating	Guarantee
SLODQ1	170-265V AC	6-11V DC	500mA±5%	5W	IP-20	2 Year
SLODQ2	170-265V AC	6-11V DC	600mA±5%	7W	IP-20	2 Year
SLODQ3	90-265V AC	25-40V DC	250mA±5%	10W	IP-20	2 Year
SLODQ4	90-265V AC	21-42V DC	300mA±5%	12W	IP-20	2 Year
SLODQ5	90-265V AC	25-40V DC	350mA±5%	15W	IP-20	2 Year
SLODQ6	90-265V AC	25-40V DC	450mA±5%	18W	IP-20	2 Year
SLODQ7	90-265V AC	25-40V DC	600mA±5%	25W	IP-20	2 Year
SLODQ8	90-265V AC	25-40V DC	700mA±5%	30W	IP-20	2 Year
SLODQ9	90-265V AC	20-42V DC	900mA±5%	40W	IP-20	2 Year
SLODQ10	90-265V AC	25-40V DC	1200mA±5%	50W	IP-20	2 Year
SLSDY0103APF	90-265V AC	3-10V DC	300mA±5%	3W	IP-20	2 Year
SLSDY0407APF	90-265V AC	13-28V DC	300mA±5%	7W	IP-20	2 Year
SLSDY0912	90-265V AC	27-40V DC	300mA±5%	12W	IP-20	2 Year
SLSDY1318	90-265V AC	46-60V DC	300mA±5%	18W	IP-20	2 Year
SLSDY1924APF	90-265V AC	54-68V DC	350mA±5%	24W	IP-20	2 Year
SLSDY2736	90-265V AC	45-65V DC	600mA±5%	36W	IP-20	2 Year
SLSDY4960	90-265V AC	44-55V DC	1100mA±5%	55W	IP-20	2 Year

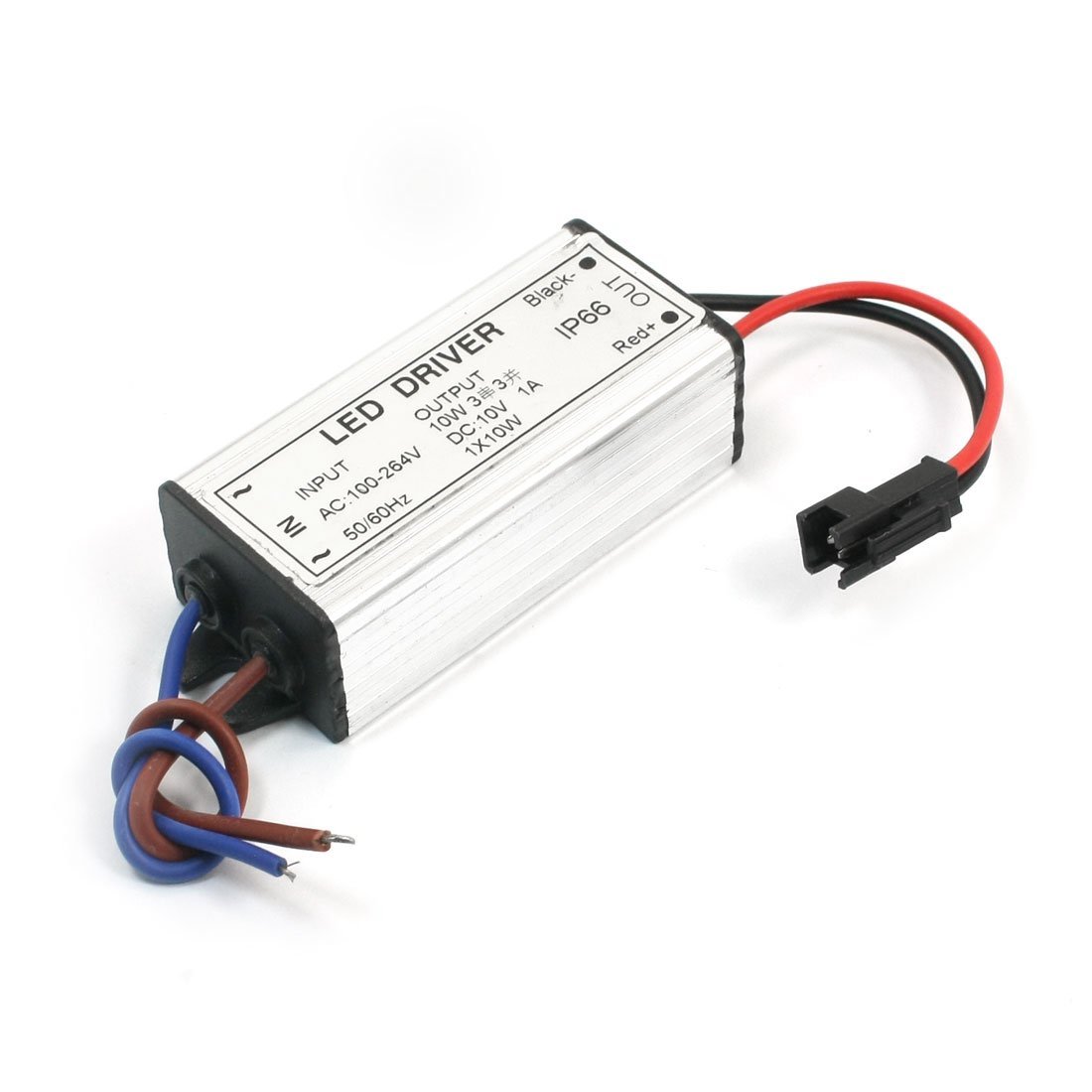

Waterproof LED Drivers

Waterproof LED Drivers

Code	Input Voltage	Output Voltage	Current	Power	IP Rating	Guarantee
SL10WFL	85-265V AC	24-36V DC	300mA±5%	10W	IP-65	2 Year
SL20WFL	85-265V AC	24-36V DC	600mA±5%	20W	IP-65	2 Year
SL30WFL	85-265V AC	24-36V DC	900mA±5%	30W	IP-65	2 Year
SL50WFL	85-400V AC	24-36V DC	1500mA±5%	50W	IP-65	2 Year

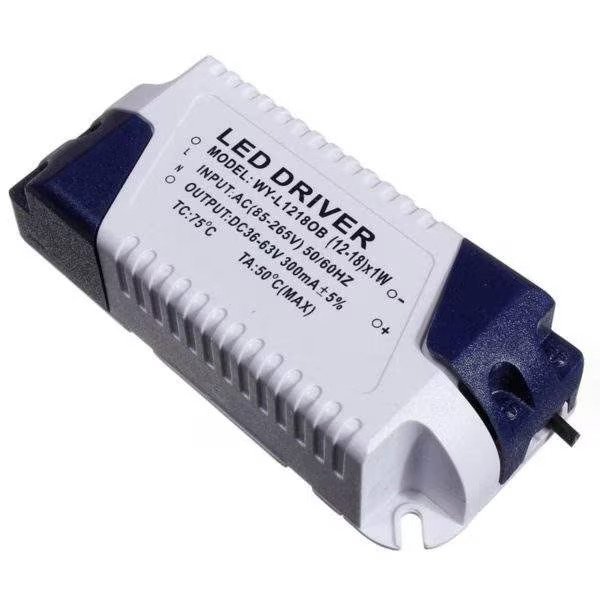

Phase Cut Dimmable LED Drivers (Traic Dimming)

Phase Cut Dimmable LED Drivers (Traic Dimming)

Code	Input Voltage	Output Voltage	Current	Power	IP Rating	Guarantee
SLOT03	170-265V AC	3-10V DC	300mA±5%	3W	IP-20	2 Year
SLOT07	170-265V AC	15-25V DC	300mA±5%	7W	IP-20	2 Year
SLOT12	170-265V AC	27-40V DC	300mA±5%	12W	IP-20	2 Year

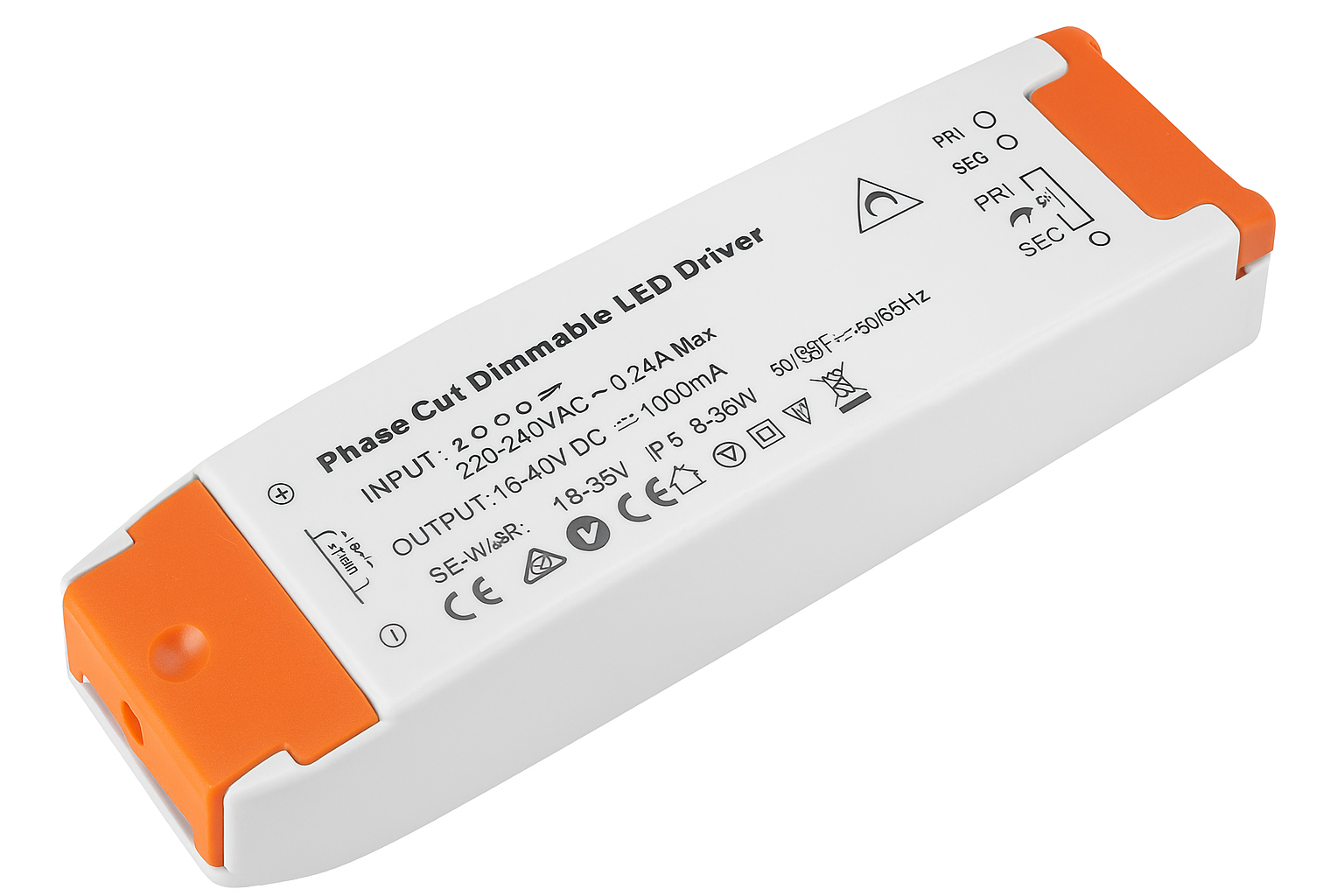

Phase Cut Dimmable LED Drivers

Phase Cut Dimmable LED Drivers

Code	Input Voltage	Output Voltage	Current	Power	IP Rating	Guarantee
SLOT03	220V AC	3-10V DC	300mA	3W Max	IP-20	2 Year
SLOT05	220V AC	6-15V DC	500mA	5W Max	IP-20	2 Year
SLOT06	220V AC	15-25V DC	300mA	6W Max	IP-20	2 Year
SLOT07	220V AC	6-15V DC	600mA	7W Max	IP-20	2 Year
SLOT10	220V AC	25-42V DC	250mA	10W Max	IP-20	2 Year
SLOT12	220V AC	25-42V DC	300mA	12W Max	IP-20	2 Year
SLOT15	220V AC	25-42V DC	400mA	15W Max	IP-20	2 Year
SLOT18	220V AC	30-60V DC	300mA	18W Max	IP-20	2 Year
SLOT20	220V AC	25-42V DC	500mA	20W Max	IP-20	2 Year
SLOT25	220V AC	25-42V DC	600mA	25W Max	IP-20	2 Year
SLOT30	220V AC	25-42V DC	700mA	30W Max	IP-20	2 Year

Analogue Dimmable LED Driver(0-10)

Analogue Dimmable LED Driver(0-10)

Code	Input Voltage	Output Voltage	Current	Power	IP Rating	Guarantee
SLODAL06	170-265V AC	15-25V DC	300mA	6W 0/1-10V	IP-20	2 Year
SLODAL07	170-265V AC	6-15V DC	600mA	7W 0/1-10V	IP-20	2 Year
SLODAL012	170-265V AC	25-42V DC	300mA	12W 0/1-10V	IP-20	2 Year
SLODAL015	170-265V AC	25-36V DC	400mA	15W 0/1-10V	IP-20	2 Year
SLODAL018	170-265V AC	25-42V DC	500mA	18W 0/1-10V	IP-20	2 Year
SLODAL025	170-265V AC	25-42V DC	600mA	25W 0/1-10V	IP-20	2 Year
SLODAL030	170-265V AC	25-42V DC	700mA	30W 0/1-10V	IP-20	2 Year
SLODAL040	170-265V AC	25-42V DC	950mA	40W 0/1-10V	IP-20	2 Year

Dali Adjustable Dimmable LED Driver(0-10)

Dali Adjustable Dimmable LED Driver(0-10)

Product Code	Input Voltage	Output	Max Wattage	IP Rating	Warranty
SLOT15DA	100-250V AC	6-42V 300mA	15W	IP-20	2 Year
SLOT30DA	100-250V AC	6-42V 550/600/650/700mA	18-30W	IP-20	2 Year
SLOT45DA	100-250V AC	6-42V 900/950/1000/1050mA	35-45W	IP-20	2 Year
